Product Description
The Raybrig NSX Concept-GT is a racing car that was developed to race in the 2014 Japanese Super GT Series, and features a 1.6-liter turbocharged direct injection engine with anti-lag, plus a mid-ship layout that optimizes distribution of the car’s weight, particularly taking into account its unique hybrid system.

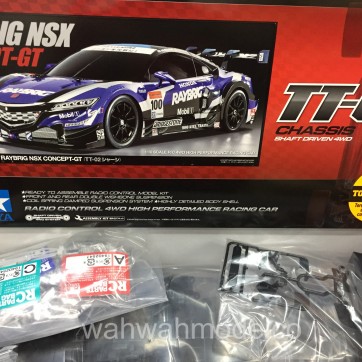

Tamiya has faithfully reproduced this sleek racing machine in 1/10 scale on the TT-02 entry level touring car chassis. The TT-02 chassis platform is the successor to the TT-01 as it incorporates many new features to make it even easier for the new R/C kit builder to assemble and learn from. The TT-02 chassis performs well as cornering and overall speed has been enhanced to take advantage of new electronics available on the market. In addition to the TT-02 being an ideal platform to start from, R/C hobbyists can expand its potential by adding many of the Ho-Up-Options available to increase the cars speed and performance.
Product Specifications
| Type | Detail |
|---|---|
| Scale | 1/10 |
| Construction type | Assembly kit |
| Terrain use | On-Road |
| Drive-train | 4WD |
| Drive type | Shaft |
| Drive line | Dog bone |
| Differential type | Gear |
| Suspension | Fully independent double wishbone |
| Steering mechanism | Bell-crank |
| Shock damper | Friction damper |
| Shock damper material | Plastic |
| Tire type | Rubber |
| Tire tread | Slick |
| Body material | Polycarbonate |
| Chassis material | Plastic |
| Electronic Speed Control (ESC) | Included |
| ESC model | TBLE-02S |
| LED Light buckets | No |
| LED lights | No |
| Motor | 540-brushed type |
| Bearings | Plastic bushing |
| Adjustable camber | Fixed |
| Adjustable toe angles | Front only |
| Adjustable ground clearance | Yes |
| Adjustable gear ratio | Yes |
| Adjustable wheelbase | Yes |
| Adjustable track width | Yes |
| Adjustable shock angle | Yes |
| Special feature 1 | Wheelbase: 257mm. |
| Special feature 2 | The TT-02 is a highly versatile and easy-to-maintain chassis. |
| Special feature 3 | Separate parts are included to recreate dynamic rear wing and unique door mirrors. |
| Special feature 4 | Comes with black 10-spoke wheels. |
| Special feature 5 | Includes body markings and masking stickers for use when painting the model. |
| Special feature 6 | Includes Tamiya TBLE-02S ESC (capable of running brushed and brushless motors) |
| Special feature 7 | Includes 540 Torque Tuned motor. |
| Requires A | 7.2 battery & charger |
| Requires B | 2-channel radio gear |
| Requires C | Polycarbonate paint |
