Product Description

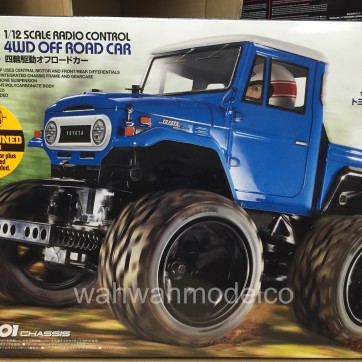

- This is the NEW GF-01 chassis platform. The first model to be featured on the chassis is a pick-up version of the Toyota Land Cruiser 40, a world-famous off-road vehicle that needs little introduction. It was produced for almost 25 years and much loved for its durability and adaptability. The GF-01 chassis plays off the successful and fun line-up of RC kits such as the Wild Willy 2, Volkswagen Type 2 and the Farm King Wheelie. Whereas those kits featured a 2WD and easy to wheelie platform, the new GF-01 is a 4WD incarnation with the motor directly placed in the center in order to drive the gears in the front and rear gearboxes.
Product Specifications
Type Detail Scale 1/12 Construction type assembly kit Terrain use multi-purpose Drive-train 4WD Drive type gearbox Drive line dog bone Differential type gear Suspension fully independent double wishbone Steering mechanism bell-crank Shock damper friction damper Shock damper material plastic Tire type rubber Tire tread block-pattern Body material Polycarbonate Chassis material plastic Electronic Speed Control (ESC) included ESC model TBLE-02S LED Light buckets no LED lights no Motor 540-brushed type Bearings plastic bushing Adjustable camber fixed Adjustable toe angles front only Adjustable ground clearance yes Adjustable gear ratio yes Adjustable wheelbase fixed Adjustable track width fixed Adjustable shock angle fixed Special feature 1 Length: 333mm, width: 244mm, height:242mm Special feature 2 The polycarbonate body accurately recreates the form of the Land Cruiser 40 with pick-up style rear end. Special feature 3 Uses front and rear differentials in a sealed gearbox integrated in the frame. Special feature 4 4-wheel double wishbone suspension utilizes friction dampers. Special feature 5 5-spoke metal-plated wheels are fitted with massive 110mm-diameter tires. Special feature 6 A driver figure is included. Special feature 7 Includes Tamiya TBLE-02S ESC (capable of running brushed and brushless motors) Special feature 8 Includes 540 Torque Tuned motor. Requires A 2-channel radio gear Requires B 7.2 battery & charger Requires C polycarbonate paint
