Product Description

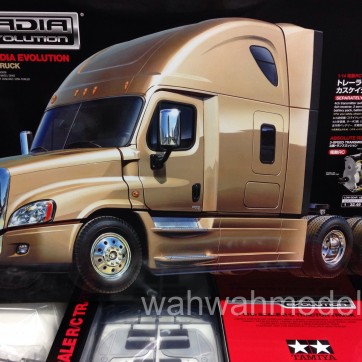

The Cascadia Evolution is an aerodynamically advanced and more fuel efficient version of the Cascadia tractor manufactured by Freightliner Trucks, a leading manufacture in the North American market. This R/C model assembly kit of the Cascadia Evolution faithfully recreates the truck’s fuel efficient form and includes a number of metal chassis parts. The highly aerodynamic form of the Cascadia Evolution was accurately captured thanks to extensive research and cooperation from Freightliner/Daimler. The model also features accurate interior details such as dashboard and seats. Gloss and matte finished metal-plated parts further heighten the model’s realism.
| Type | Detail |
|---|---|
| Scale | 1/14 |
| Construction type | assembly kit |
| Terrain use | on-road |
| Drive-train | 4-axle semi |
| Drive type | gearbox |
| Drive line | dog bone |
| Differential type | gear |
| Suspension | leaf spring |
| Steering mechanism | bell-crank |
| Shock damper | friction damper |
| Shock damper material | aluminum |
| Tire type | rubber |
| Tire tread | radial |
| Body material | ABS Plastic |
| Chassis material | aluminum & plastic |
| Electronic Speed Control (ESC) | not included |
| ESC model | n/a |
| LED Light buckets | yes |
| LED lights | sold separately |
| Motor | 540-brushed type |
| Bearings | metal bearings |
| Adjustable camber | fixed |
| Adjustable toe angles | fixed |
| Adjustable ground clearance | fixed |
| Adjustable gear ratio | 3-speed transmission |
| Adjustable wheelbase | fixed |
| Adjustable track width | fixed |
| Adjustable shock angle | fixed |
| Special feature 1 | Length: 648mm, Width: 195mm, Height: 308mm. |
| Special feature 2 | The R/C model is capable of 3-speed gear changes via a 4-channel transmitter control system. |
| Special feature 3 | The ladder frame chassis features aluminum side channels with resin cross members, and are equipped with a coupler to enable linkage with any of Tamiya?s semi-trailers. |
| Special feature 4 | Power from the front-mounted motor is delivered to the rear wheels via propeller shafts. |
| Special feature 5 | Built-in differential gears enable smooth cornering. |
| Special feature 6 | The highly-realistic suspension utilizes metal leaf springs and friction dampers. |
| Special feature 7 | The model exhibits easy driving thanks to the float-mounted die-cast front axle and reinforced rear axle. |
| Special feature 8 | LEDs can be used to accurately recreate the truck?s front and rear lights. |
| Special feature 9 | A wide variety of Tractor Truck Option Parts are available for you to further customize your individual machine. |
| Special feature 10 | Tamiya Attack 4YWD 2.4 GHz radio system sold separately and recommended for full functionality when using the optional Multi-Function Unit. |
| Requires A | 4-channel radio gear |
| Requires B | 7.2 battery & charger |
| Requires C | electronic speed control |
| Requires D | TS plastic model paint |
