Product Description

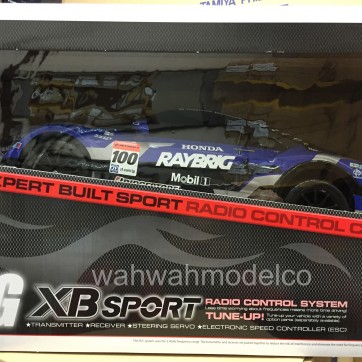

This is a fully factory assembled and ready-to-run R/C model of the Raybrig NSX Concept-GT. The painted and finished super detailed polycarbonate body is mated to the easy to maintain TT-01 Type ES 4WD on-road chassis platform. The TT01 Type ES chassis features a 4WD drive-train with fully independent double wishbone suspension. The pre-installed 2-channel radio gear system operates on 2.4GHz technology which allows you to run your vehicle anywhere without the need to worry about other R/C enthusiasts nearby.
Product Specifications
| Type | Detail |
|---|---|
| Scale | 1/10 |
| Construction type | RTR (Ready-to-Run) |
| Terrain use | On-Road |
| Drive-train | 4WD |
| Drive type | Shaft |
| Drive line | Dog bone |
| Differential type | Gear |
| Suspension | Fully independent double wishbone |
| Steering mechanism | Bell-crank |
| Shock damper | Friction damper |
| Shock damper material | Plastic |
| Tire type | Rubber |
| Tire tread | Slick |
| Body material | Polycarbonate |
| Chassis material | Plastic |
| Electronic Speed Control (ESC) | Included |
| ESC model | TEU-105BK |
| LED Light buckets | No |
| LED lights | No |
| Motor | 540-brushed type |
| Bearings | Plastic bushing |
| Adjustable camber | Fixed |
| Adjustable toe angles | Front only |
| Adjustable ground clearance | Yes |
| Adjustable gear ratio | Yes |
| Adjustable wheelbase | Yes |
| Adjustable track width | Fixed |
| Adjustable shock angle | Yes |
| Special feature 1 | Comes with a finished polycarbonate body. Length: 475mm. |
| Special feature 2 | The TT-01 Type-ES chassis is a streamlined version of the TT-01 Type-E Chassis, and is therefore compatible with a wide range of Option Parts for customization. |
| Special feature 3 | Includes: Finespec 2.4GHz R/C system pre-installed. |
| Special feature 4 | Includes: TEU-105BK ESC (equipped with BEC) pre-installed. |
| Requires A | 7.2 battery & charger |
| Requires B | AA batteries |
