Product Description

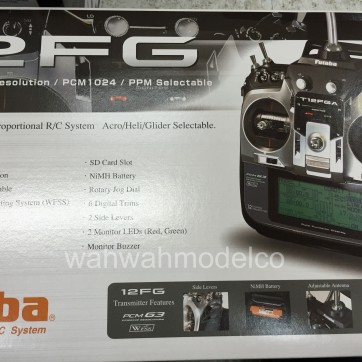

This is the 40MHz Futaba 12FGA Computer Radio on Mode 1 with the R5114DPS Synthesized 14-Channel Receiver and S9252 Servo.�
This is the airplane version which will default to airplane settings when powered up and has a ratcheted throttle stick.�
The Futaba 12FGA shares many features with the 14MZ such as Real-Time Response with 2048PCM, Fully Synthesized Receiver that operates in either Mode A (standard Mode) or Mode B (new Mode), Servo Grouping, Variable Dual Rates and Quad-Bearing Gimbals.
FEATURES:
- PCM G3 2048 resolution is “backwards compatible” with 1024 PCM, and FM/PPM
- 10 free (user programmable) mixes
- 24 preset model types, 8 heli swash types and 16 model types for fixed wing aircraft
- 6 types of no tail wing (winglet) in each airplane and glider
- Supports eight flight conditions (seven plus the default)
- FLASH-ROM memory for up to thirty models
- 1882 model memory available with optional 1GB SD Card available separately, Six factory-set Variable Dual Rate (VDR) curves can be assigned to any function in any flight condition configuration
- Variable Dual Rates (VDR) and Expo can be combined so they are automatically activated when a function is activated, no program mixing required
- Dual Antenna Diversity (DAD)
- “Full Functionality” trainer system
- 255 x 96 LCD with adjustable contrast
- 7.2V 1700mAh NiMH transmitter battery
- R5114DPS Receiver;
- Operates in either Mode A (standard Mode) or if flying a model that generates a lot of RF interference or if flying in an area where interference may occur Mode B (new Mode) may be selected
- By using state-of-the-art Ball Grid Array (BGA) layered PC board technology, this 14-channel synthesized receiver is the world’s smallest. All pilots will appreciate how easy its
- WFSS (Wireless Frequency Setting System) makes changing frequencies at busy airfields. It can be done right from the transmitter without changing crystals.
- Servo Grouping;
- Multiple servos controlling a single function can be set up through the transmitter and then plugged into differently adjustable receiver channels (even non-consecutively) without needing a separate servo synchronizer for mixing. Each servo’s
- EPA can be adjusted individually from the transmitter-no separate servo synchronizer requires for mixing
- Quad-Bearing Gimbals for smoothest motion and response, stick tension and detent are adjustable
- Front mounted slider switches for easier access
- Seven color LED indicator
INCLUDES:
- 12FGA Synthesized Transmitter (not available separately) 40MHz Module
- 7.2V 1700mAh NiMH Transmitter Battery
- Battery Charger
- NiCd 1500mAh 4.8V Receiver Battery
- Four S9252 Servo
- R5114DPS Receiver
- Heavy Duty Switch Harness
- Woven Orange Neck Strap
- Instruction Manual
SPECS:
- Transmitter:
- Operating System: 2-stick, 12 channels, PCM-G3 synthesizer system
- Modulation: PCM-G3, PCM 1024, or FM/PPM switchable
- Receiver:
- Receiving Frequency: US only 72MHz bands
- Intermediate Frequency: 10.7MHz & 450kHz
- Size: 2″ x 1.5″ x .65″ (52mm x 37.5mm x 16.5mm)
- Power Requirement: 4.8V NiCd battery
- Current Drain: 75mA
- Weight: 1.16oz (33g)
- Servo:
- Speed: 0.14 sec/60�X @ 4.8V
- Torque: 92 oz-in (6.6 kg-cm) @ 4.8V
- Power Supply: 4.8V (Futaba does not recommend using 6V)
- Size: 1.6 x 0.8 x 1.4″ (40 x 20 x 37mm)
- Weight: 1.8oz (50g)
