Product Description
-

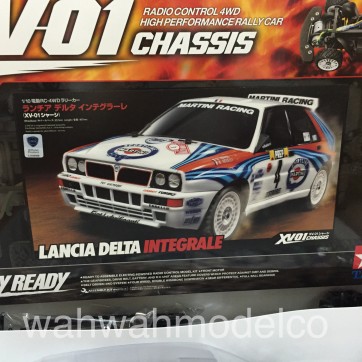

The Lancia Delta Integrale, which has made a number of appearances on various Tamiya chassis platforms over the years, now makes its home on the XV-01 chassis. The Lancia Delta Integrale was a legendary Rally warrior, as fans of the sport are sure to remember, as it won 6 titles back-to-back at the end of the 1980s and start of the 1990s.
The 4WD XV-01 chassis offers dynamic R/C rally driving on both tarmac and gravel surfaces. It features a front-motor, belt-driven 4WD layout with front and rear enclosed gearboxes equipped with gear differential units. The box-like main frame incorporates covers and wheel well liners to provide superb protection against dirt and debris. The 4-wheel double wishbone suspension ensures plenty of suspension stroke and ground clearance and is matched with Rally Block Tires on replica wheels for realistic handling.
Product Specifications
Type Detail Scale 1/10 Construction type assembly kit Terrain use multi-purpose Drive-train 4WD Drive type Dual-Drive Drive line dog bone Differential type gear Suspension fully independent double wishbone Steering mechanism bell-crank Shock damper oil-filled damper Shock damper material plastic Tire type rubber Tire tread rally block Body material Polycarbonate Chassis material plastic Electronic Speed Control (ESC) not included ESC model n/a LED Light buckets no LED lights no Motor 540-brushed type Bearings shielded ball bearing Adjustable camber yes Adjustable toe angles front and rear Adjustable ground clearance yes Adjustable gear ratio yes Adjustable wheelbase fixed Adjustable track width fixed Adjustable shock angle yes Special feature 1 Dust covers for debris protection for radio gear Special feature 2 Front-mounted motor is housed in a gearbox which has been designed for ease of maintenance Special feature 3 Radio gear components are protected by covers that are secured by screws Special feature 4 A hatch on the underside of the XV-01 chassis enables quick access to the battery Special feature 5 Holes in the chassis bottom help remove any debris which may block steering movement during off-road use Special feature 6 Reversible-type rear suspension ensures plenty of suspension stroke for off-road driving Special feature 7 The separate suspension mounts makes it easy to change settings such as toe angle Requires A 2-channel radio gear & electronic speed control Requires B 7.2 battery & charger Requires C polycarbonate paint
